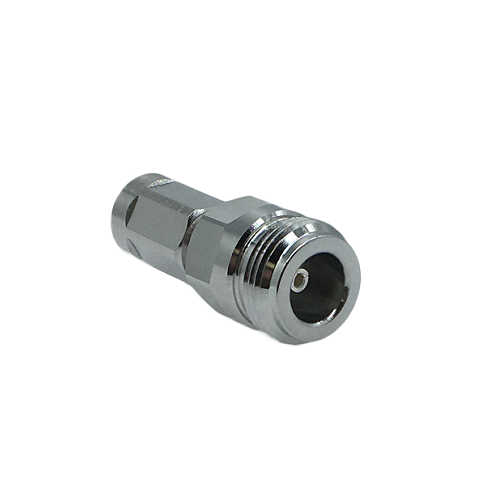

NEX10 Male to N-Type Female Adapter

Materials & Plating

• Body - Brass, Tri-Alloy
• Insulator - PTFE
• Centre conductor - Bronze, Silver Plated

Electrical Characteristics

• Characteristic Impedance- 50 ohm
• Frequency Range - DC-3GHz
• VSWR - ≤1.10
• PIM (@2-tonex20w) - ≤160dBC
• Insertion Loss - ≤0.05*√fdB
• Dielectric Withstanding Voltage- ≥750VRMS,50Hz,at sea level
• Dielectric Resistance - ≥5000M
• Contact Resistance - Outer contact ≤2.5mΩ;Center Contact ≤3.0mΩ

Mechanical Characteristics

• Durability - ≥ 100 Mating cycles

Environmental Characteristics

• Temperature Range: -40 degrees celsius - +85 degrees celsius
• Rosh-compliance - Full ROHS compliance
• Salt-fog test - 96h
•
